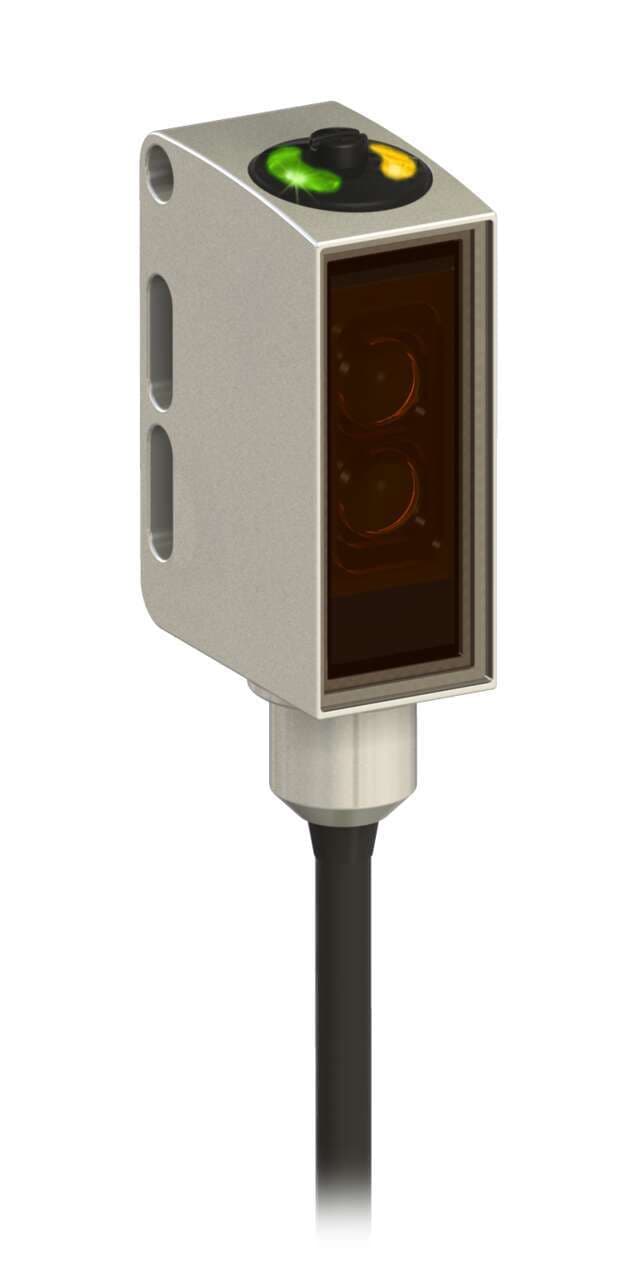

QM26VPAF400-5M Banner Proximity Sensors
Part#:QM26VPAF400-5M
Alt. Part#:28730
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Adjustable BGS (Large Red LED); Range: 400 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 5 m (16.25 ft) Cable
Product Details
- Weight 181.4368 g
- Country Of Origin DE
- Product series / family name Q series
- Design background suppression system FDA compliant (washdown rated)
- Digital outputs 1 x digital output (PNP transistor)
- Equivalent to QM26VPAF4005M
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 400mm
- Connection type Pre-wired with 5m cable terminated with bare end flying leads
- Material Hygienic stainless steel 316L housing PMMA lns.
- Main function Sensor (Photo-electric)
- Functions Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Shape Rectangular
- Response time 0.5ms / 0.0005 s
- Order code / Manufacturer SKU 28730
- Primary brand Banner Engineering
- Light Color Visible red
- Degree of protection IP69K
- Sub-range name QM26
- Wavelength 620 nm
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -30...+70 °C
- Max Sensing Distance (mm) 400
- Delay at Power-up (ms) 300
- Adjustments Screw Adjustment
- DeviceNet No
- Sensing Mode (General) Proximity
- Connection Cable
- Special Feature: Remote Teach No
- Indicator LEDs
- Power DC
- Min Op. Temp. (°C) -30
- Sensing Beam Wavelength 620
- Barrel Diameter (mm) N/A
- Sensing Beam Visible Red LED
- Outputs PNP
- Number of Pins 4
- Feature: Washdown Rated Yes
- Housing Style Rectangular
- Operation Light/Dark Operate
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Output response time (ms) 0.5
- Feature: Timing (Hold/Delay) No
- Feature: Audible No
- Small Visible Spot LED
- Quick Disconnect Type No QD
- Repeatability (µs) 150
- Opposed Mode Emitter/Receiver N/A
- Power Supply/Supply Voltage 10-30 V dc
- Cable Length (m) 5
- Special Feature: Water Detection No
- Lens Material PMMA
- Feature: Chemical Resistant Yes
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Hazardous Area No
- Primary Housing Material Stainless Steel
- Max Op. Temp. (°C) 70
- NEMA Rating N/A
- Feature: Encapsulated No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VPAF400-5M on Powermatic Associates is $289.00. Order now.
About the product
Banner Engineering QM26VPAF400-5M is an adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -30 to +70°C and features a background suppression system with screw adjustment. This sensor is FDA compliant, making it suitable for washdown applications, and comes pre-wired with a 5m cable that terminates with bare end flying leads. As part of the QM26 series, it offers an IP69K degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from hygienic stainless steel 316L housing and a Polymethyl methacrylate (PMMA) lens, supporting a sensing distance of 400mm. The sensor emits visible red light at a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. It features 1 x digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.5ms / 0.0005 s.
