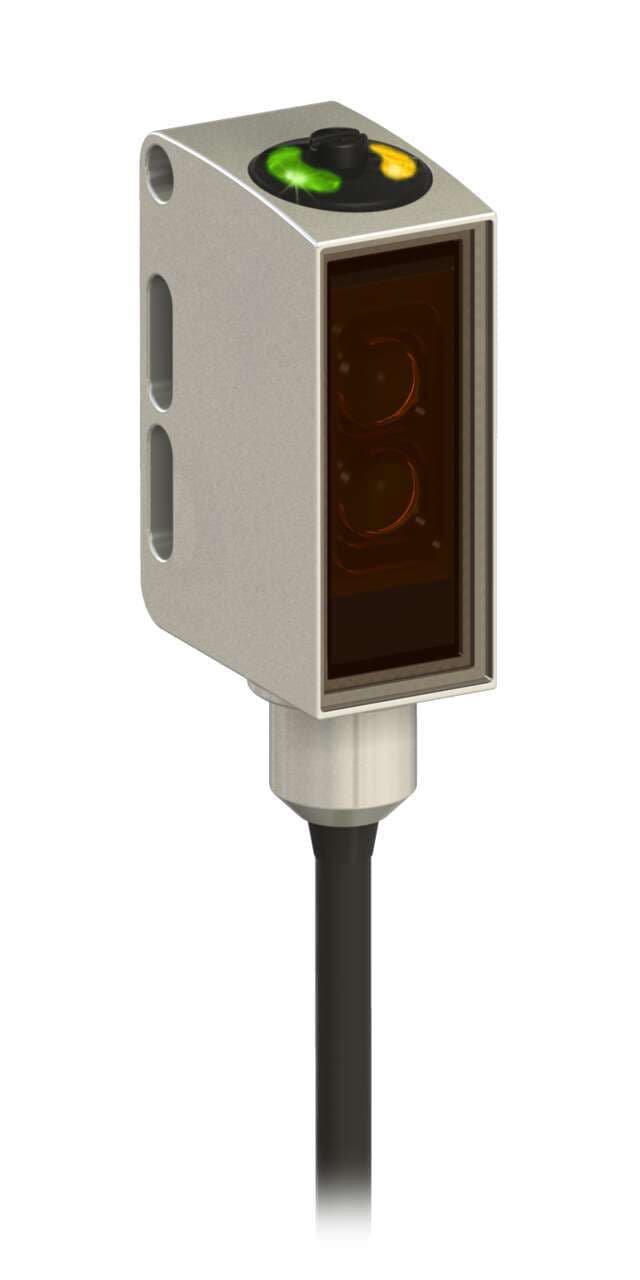

QM26VNAF200Q5 Banner Proximity Sensors

QM26VNAF200Q5 on Powermatic Associates
Banner

Part#:QM26VNAF200Q5

Alt. Part#:28734

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

QM26 Washdown Series: Adjustable BGS (Small Red LED); Range: 200 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 200 mm (7.5 in) M12 Pigtail QD

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    DE
  • Main function
    Sensor (Photo-electric)
  • Functions
    Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
  • Design
    background suppression system FDA compliant (washdown rated)
  • Ambient air temperature for operation
    -30...+70 °C
  • Primary brand
    Banner Engineering
  • Wavelength
    660 nm
  • Operating mode
    Light-ON Dark-ON
  • Order code / Manufacturer SKU
    28734
  • Sub-range name
    QM26
  • Light Color
    Visible red
  • Connection type
    Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
  • Degree of protection
    IP69K
  • Product series / family name
    Q series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (NPN transistor)
  • Sensing distance
    200mm
  • Response time
    0.5ms / 0.0005 s
  • Material
    Hygienic stainless steel 316L housing PMMA lns.
  • Small Visible Spot
    LED
  • Quick Disconnect Type
    M12 (Euro)
  • Repeatability (µs)
    150
  • Feature: Encapsulated
    No
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Feature: Timing (Hold/Delay)
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Delay at Power-up (ms)
    300
  • Barrel Diameter (mm)
    N/A
  • Max Sensing Distance (mm)
    200
  • Min Op. Temp. (°C)
    -30
  • Special Feature: Water Detection
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Primary Housing Material
    Stainless Steel
  • Connection
    Pigtail QD
  • Indicator
    LEDs
  • Feature: Audible
    No
  • Sensing Beam
    Visible Red LED
  • NEMA Rating
    N/A
  • Adjustments
    Screw Adjustment
  • Feature: Chemical Resistant
    Yes
  • Input/Output
    Discrete
  • Sensing Beam Wavelength
    660
  • Feature: Ecolab Certified
    Yes
  • Housing Style
    Rectangular
  • Outputs
    NPN
  • Lens Material
    PMMA
  • IP Rating
    IP69
  • DeviceNet
    No
  • Sensing Mode (General)
    Proximity
  • Output response time (ms)
    0.5
  • Number of Pins
    4
  • Max Op. Relative Humidity [%]
    95% @ 55°C
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    No
  • Feature: Washdown Rated
    Yes
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VNAF200Q5 on Powermatic Associates is $307.00. Order now.

About the product

Banner Engineering QM26VNAF200Q5 is an adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -30 to +70°C and features a background suppression system with screw adjustment. This sensor is FDA compliant, making it suitable for washdown applications, and comes pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector. As part of the QM26 series, it offers an IP69K degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. It has a rectangular shape and is constructed from hygienic stainless steel 316L housing with a Polymethyl methacrylate (PMMA) lens. The sensing distance is 200mm, utilizing visible red light with a wavelength of 660 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 0.5ms / 0.0005 s.
