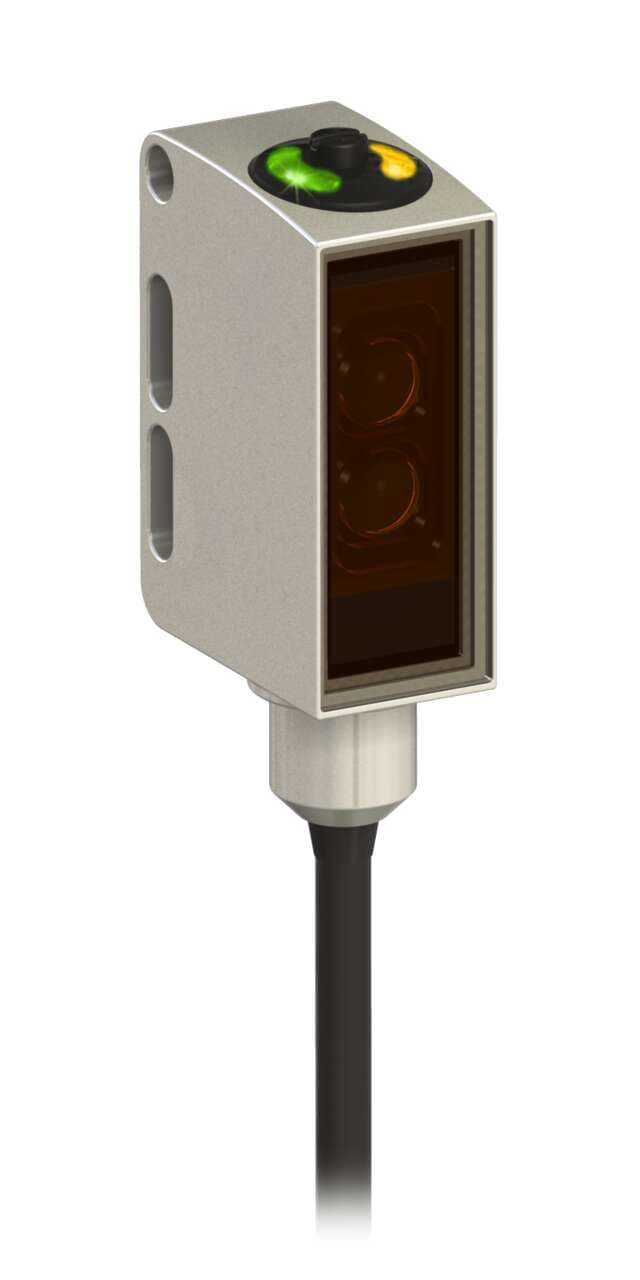

QM26VNAF400Q5 Banner Proximity Sensors
Part#:QM26VNAF400Q5
Alt. Part#:28729
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Adjustable BGS (Large Red LED); Range: 400 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 200 mm (7.5 in) M12 Pigtail QD
Product Details
- Weight 68.0388 g
- Country Of Origin DE
- Degree of protection IP69K
- Sensing distance 400mm
- Primary brand Banner Engineering
- Functions Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -30...+70 °C
- Design background suppression system FDA compliant (washdown rated)
- Connection type Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
- Material Hygienic stainless steel 316L housing PMMA lns.
- Shape Rectangular
- Response time 0.5ms / 0.0005 s
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 620 nm
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 28729
- Sub-range name QM26
- Product series / family name Q series
- Power DC
- Max Op. Temp. (°C) 70
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 55°C
- Small Visible Spot LED
- Connection Pigtail QD
- Sensing Beam Wavelength 620
- Feature: Washdown Rated Yes
- Primary Housing Material Stainless Steel
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Proximity
- Outputs NPN
- Output response time (ms) 0.5
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 150
- NEMA Rating N/A
- Feature: Encapsulated No
- Max Sensing Distance (mm) 400
- Operation Light/Dark Operate
- Lens Material PMMA
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Quick Disconnect Type M12 (Euro)
- Adjustments Screw Adjustment
- Feature: Hazardous Area No
- Input/Output Discrete
- Min Op. Temp. (°C) -30
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Delay at Power-up (ms) 300
- Indicator LEDs
- DeviceNet No
- IO Link No
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VNAF400Q5 on Powermatic Associates is $289.00. Order now.
About the product
Banner Engineering QM26VNAF400Q5 is an adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -30 to +70°C and features a background suppression system with screw adjustment. This sensor is FDA compliant, making it suitable for washdown applications, and comes pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector. As part of the QM26 series, it offers an IP69K degree of protection against ingress, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from hygienic stainless steel 316L housing and Polymethyl methacrylate (PMMA) lens, designed for demanding applications. With a sensing distance of 400mm and emitting visible red light at a wavelength of 620 nm, it supports both Light-ON and Dark-ON operating modes. The sensor provides one digital output (NPN transistor; complementary NO/NC) and boasts a rapid response time of 0.5ms / 0.0005 s.
