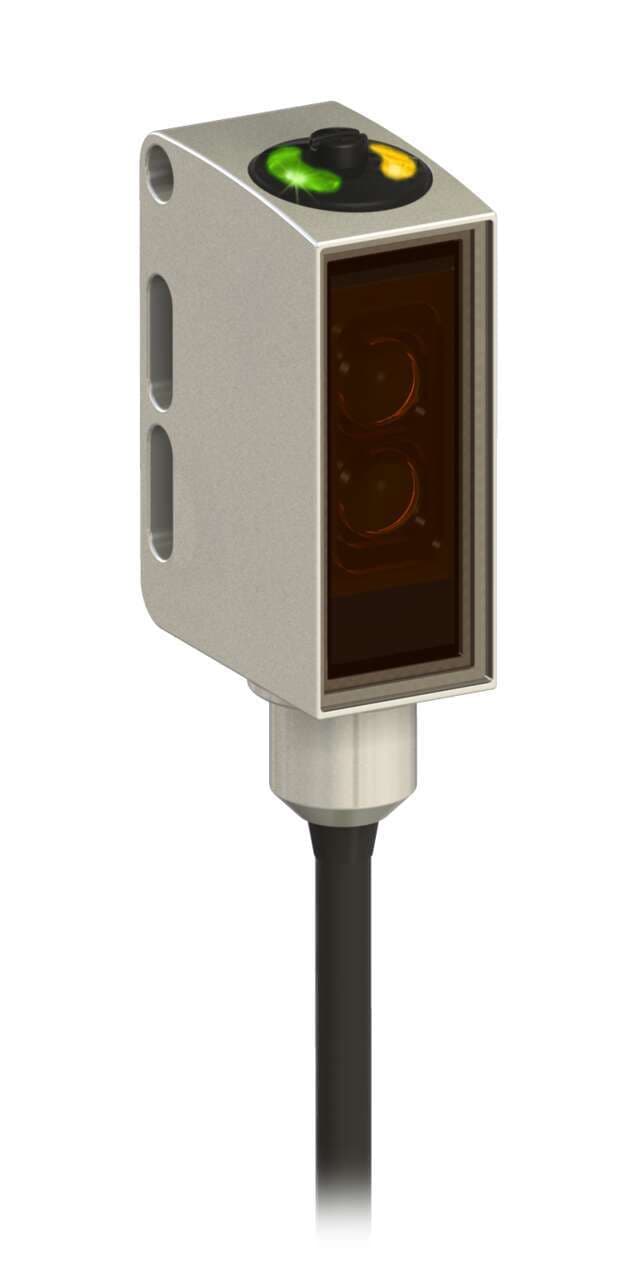

QM26EPXLPCQ5 Banner Proximity Sensors
Part#:QM26EPXLPCQ5
Alt. Part#:28727
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Low Contrast Coaxial Polarized Retro; Range: 2.6 m; Input 10-30 V dc; Output: Solid-State PNP with teach Input; 200 mm (7.5 in) M12 Pigtail QD
Product Details
- Weight 68.0388 g
- Country Of Origin DE
- Primary brand Banner Engineering
- Shape Rectangular
- Design retro-reflective mode FDA compliant (washdown rated)
- Sub-range name QM26
- Sensing distance 2.6m
- Light Color Visible red
- Material Hygienic stainless steel 316L housing PMMA lns.
- Main function Sensor (Photo-electric)
- Wavelength 620 nm
- Order code / Manufacturer SKU 28727
- Functions Polarized (coaxial) photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
- Operating mode Light-ON Dark-ON
- Degree of protection IP69K
- Response time 0.5ms / 0.0005 s
- Ambient air temperature for operation -30...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name Q series
- Max Sensing Distance (mm) 2600
- Output response time (ms) 0.5
- IP Rating IP69
- Feature: Hazardous Area No
- Power DC
- Primary Housing Material Stainless Steel
- Outputs PNP
- Operation Light/Dark Operate
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 55°C
- NEMA Rating N/A
- Lens Material PMMA
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Input/Output Discrete
- Sensing Beam Visible Red LED
- Sensing Mode (Detailed) Polarized (Coaxial)
- Housing Style Rectangular
- Sensing Mode (General) Retroreflective
- Power Supply/Supply Voltage 10-30 V dc
- Connection Pigtail QD
- Quick Disconnect Type M12 (Euro)
- Min Op. Temp. (°C) -30
- Delay at Power-up (ms) 300
- Repeatability (µs) 150
- Sensing Beam Wavelength 620
- Special Feature: Water Detection No
- Special Feature: Remote Teach Yes
- Number of Pins 4
- Indicator LEDs
- Barrel Diameter (mm) N/A
- Opposed Mode Emitter/Receiver N/A
- Adjustments Teach Button
- Feature: Clear Object Detection Yes
- Feature: Washdown Rated Yes
- Feature: Chemical Resistant Yes
- Feature: Audible No
- IO Link No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26EPXLPCQ5 on Powermatic Associates is $312.00. Order now.
About the product
Banner Engineering QM26EPXLPCQ5 is a polarized (coaxial) photo-electric sensor designed for a variety of applications requiring precise detection. It operates within an ambient air temperature range of -30 to +70°C and features a retro-reflective mode with TEACH functionality. This sensor is FDA compliant, suitable for washdown environments, as indicated by its IP69K degree of protection. It comes pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. The QM26 series sensor is powered by a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from hygienic stainless steel 316L housing and a Polymethyl methacrylate (PMMA) lens, ensuring durability in harsh conditions. The sensing distance reaches up to 2.6m, utilizing visible red light with a wavelength of 620 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.5ms / 0.0005 s.
