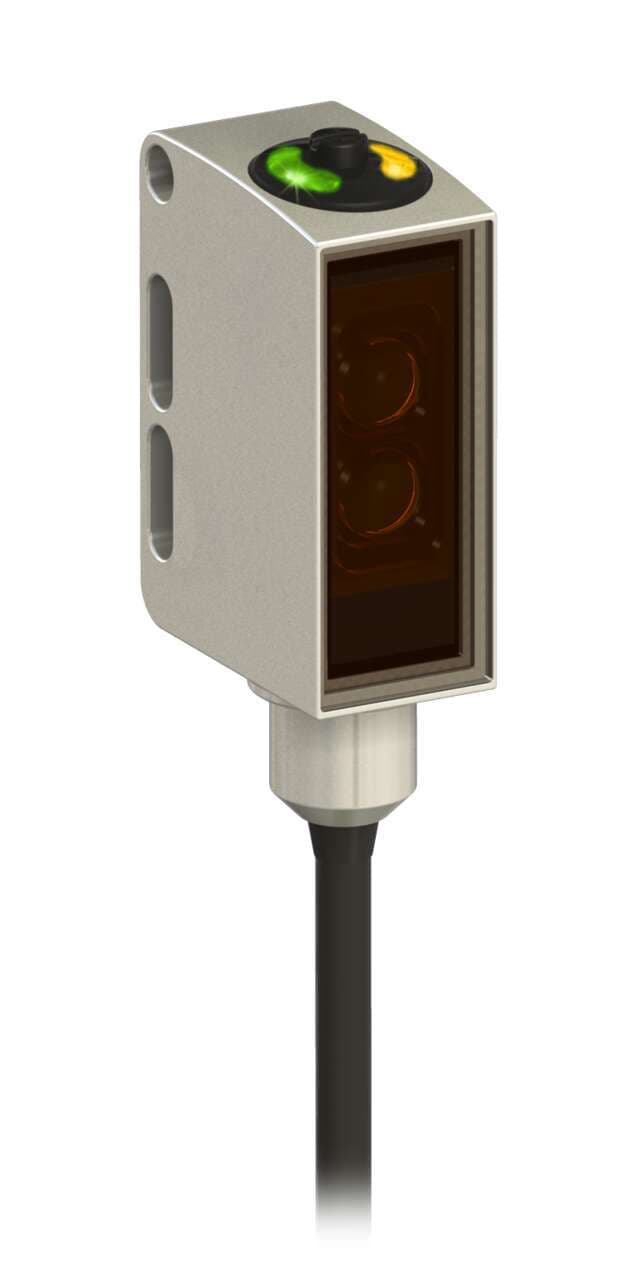

QM26VNR-5M Banner Proximity Sensors
Part#:QM26VNR-5M
Alt. Part#:28707
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Receiver; Range: 8.5 m; Input 10-30 V dc; Output: Complementary Solid-State NPN; 5 m (16.25 ft) Cable
Product Details
- Weight 181.4368 g
- Country Of Origin DE
- Main function Sensor (Photo-electric)
- Wavelength 620 nm
- Shape Rectangular
- Sub-range name QM26
- Sensing distance 8.5m
- Operating mode Light-ON Dark-ON
- Material Hygienic stainless steel 316L housing PMMA lns.
- Order code / Manufacturer SKU 28707
- Light Color Visible red
- Digital outputs 1 x digital output (NPN transistor)
- Response time 0.5ms / 0.0005 s
- Product series / family name Q series
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Connection type Pre-wired with 5m cable terminated with bare end flying leads
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Design through-beam system / opposed mode FDA compliant (washdown rated)
- Ambient air temperature for operation -30...+70 °C
- Degree of protection IP69K
- Equivalent to QM26VNR5M
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Adjustments N/A
- DeviceNet No
- Sensing Mode (Detailed) Receiver
- Delay at Power-up (ms) 300
- Lens Material PMMA
- Feature: Audible No
- Power DC
- Housing Style Rectangular
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Opposed
- Connection Cable
- Min Op. Temp. (°C) -30
- Special Feature: Water Detection No
- IP Rating IP69
- Feature: Washdown Rated Yes
- Primary Housing Material Stainless Steel
- Quick Disconnect Type No QD
- Sensing Beam Wavelength 620
- Opposed Mode Emitter/Receiver Receiver
- Feature: Timing (Hold/Delay) No
- IO Link No
- Max Sensing Distance (mm) 8500
- Output response time (ms) 0.5
- NEMA Rating N/A
- Feature: Encapsulated No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Feature: Hazardous Area No
- Outputs NPN
- Repeatability (µs) 110
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Chemical Resistant Yes
- Cable Length (m) 5
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Barrel Diameter (mm) N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VNR-5M on Powermatic Associates is $261.00. Order now.
About the product
Banner Engineering QM26VNR-5M is a photo-electric sensor designed for through-beam system applications, specifically in environments requiring stringent hygiene standards due to its FDA compliant, washdown rated design. This sensor operates within an ambient air temperature range of -30 to +70°C and is housed in hygienic stainless steel 316L with a Polymethyl methacrylate (PMMA) lens, ensuring durability and suitability for various industrial applications. It features a pre-wired 5m cable with bare end flying leads for connectivity, and boasts an IP69K degree of protection against ingress. The QM26VNR-5M operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and offers a sensing distance of up to 8.5m. It emits a visible red light with a wavelength of 620 nm and can operate in both Light-ON and Dark-ON modes. This model includes 1 x digital output (NPN transistor; complementary NO/NC) and has a rapid response time of 0.5ms / 0.0005 s, making it a precise choice for various detection tasks within the QM26 series.
