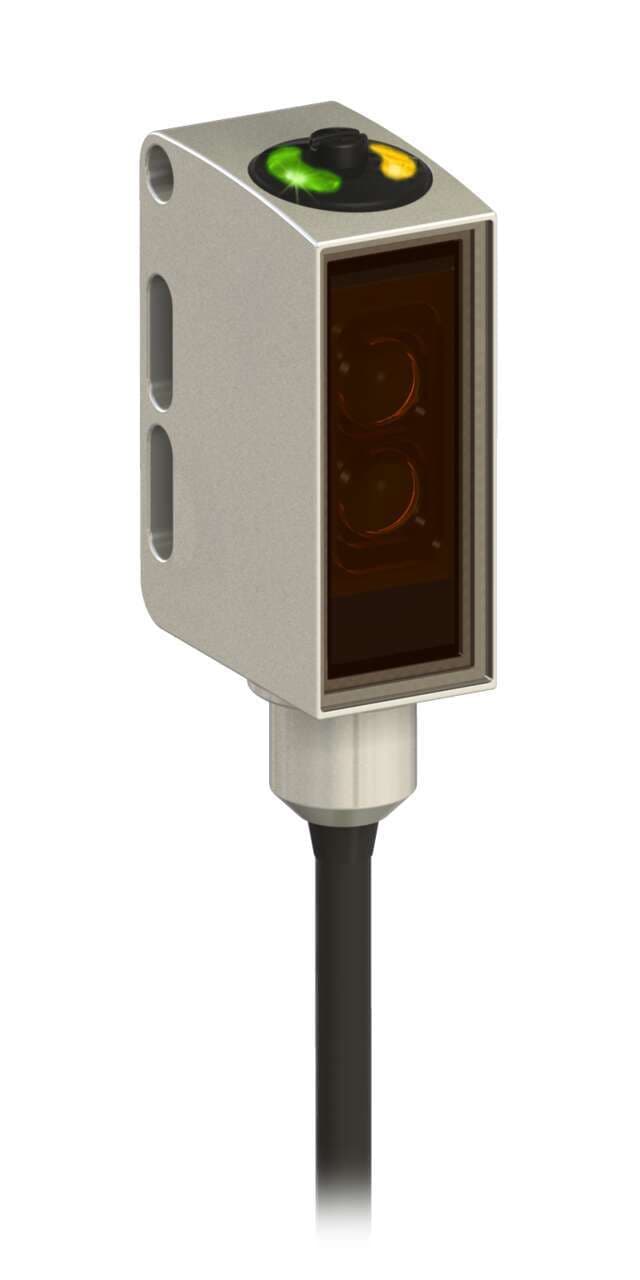

QM26VPLP-5M Banner Proximity Sensors
Part#:QM26VPLP-5M
Alt. Part#:28718
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QM26 Washdown Series: Standard Polarized Retro; Range: 3 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 5 m (16.25 ft) Cable
Product Details
- Weight 204.1164 g
- Country Of Origin DE
- Product series / family name Q series
- Functions Polarized photo-electric sensor green LED (power ON) yellow LED (output state)
- Light Color Visible red
- Main function Sensor (Photo-electric)
- Sub-range name QM26
- Sensing distance 3m
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Design retro-reflective mode FDA compliant (washdown rated)
- Operating mode Light-ON Dark-ON
- Material Hygienic stainless steel 316L housing PMMA lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Ambient air temperature for operation -30...+70 °C
- Wavelength 620 nm
- Degree of protection IP69K
- Order code / Manufacturer SKU 28718
- Connection type Pre-wired with 5m cable terminated with bare end flying leads
- Equivalent to QM26VPLP5M
- Response time 0.5ms / 0.0005 s
- Sensing Beam Visible Red LED
- Output response time (ms) 0.5
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Power Supply/Supply Voltage 10-30 V dc
- Adjustments N/A
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 3000
- NEMA Rating N/A
- Feature: Washdown Rated Yes
- Power DC
- Quick Disconnect Type No QD
- Repeatability (µs) 150
- Feature: Ecolab Certified Yes
- Feature: Encapsulated No
- Cable Length (m) 5
- Connection Cable
- Special Feature: Remote Teach No
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Indicator LEDs
- Feature: Chemical Resistant Yes
- Input/Output Discrete
- Outputs PNP
- Sensing Beam Wavelength 620
- DeviceNet No
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -30
- IP Rating IP69
- Barrel Diameter (mm) N/A
- Housing Style Rectangular
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 55°C
- IO Link No
- Primary Housing Material Stainless Steel
- Max Op. Temp. (°C) 70
- Lens Material PMMA
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM26VPLP-5M on Powermatic Associates is $267.00. Order now.
About the product
Banner Engineering QM26VPLP-5M is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. It operates within an ambient air temperature range of -30 to +70°C and features a retro-reflective mode that is FDA compliant, making it suitable for washdown environments. This sensor is part of the QM26 series and offers a high degree of protection with an IP69K rating. It is equipped with a pre-wired 5m cable that terminates with bare end flying leads for easy installation. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from hygienic stainless steel 316L housing and a Polymethyl methacrylate (PMMA) lens, ensuring durability and cleanliness. The QM26VPLP-5M can detect objects up to 3m away and utilizes visible red light with a wavelength of 620 nm for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.5ms / 0.0005 s.
