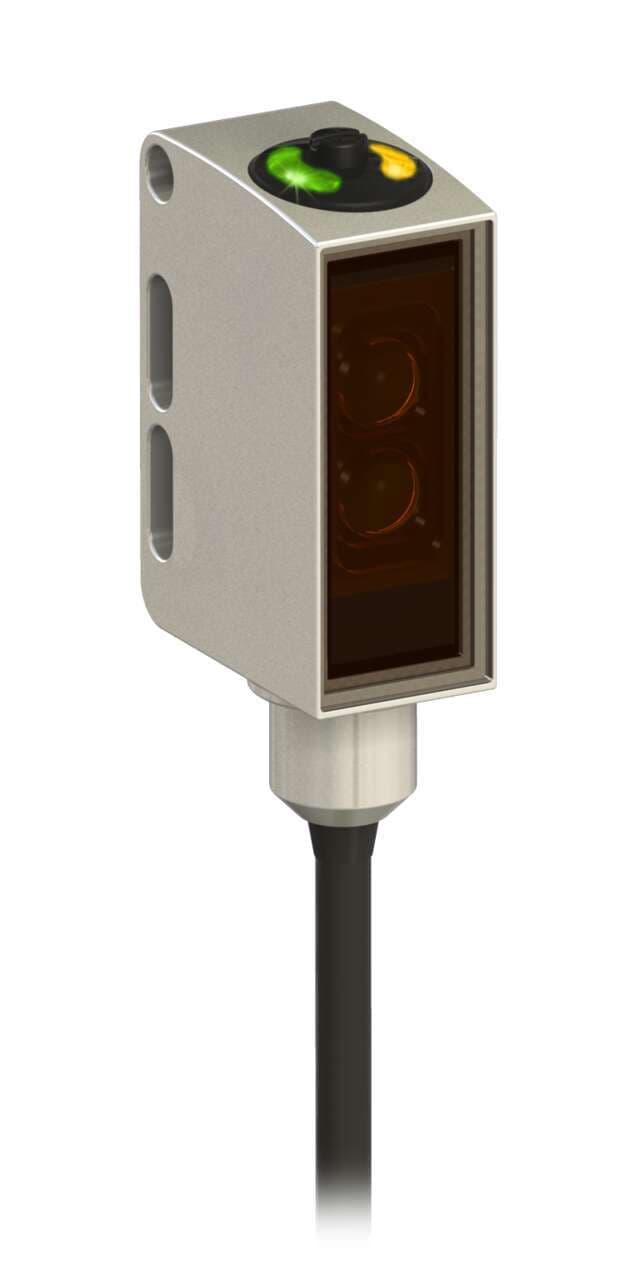

QM26VNLPQ5 Banner Proximity Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  DE
• Primary brand
  Banner Engineering
• Main function
  Sensor (Photo-electric)
• Sensing distance
  3m
• Digital outputs
  1 x digital output (NPN transistor)
• Sub-range name
  QM26
• Light Color
  Visible red
• Operating mode
  Light-ON Dark-ON
• Order code / Manufacturer SKU
  28717
• Product series / family name
  Q series
• Design
  retro-reflective mode FDA compliant (washdown rated)
• Connection type
  Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  620 nm
• Response time
  0.5ms / 0.0005 s
• Functions
  Polarized photo-electric sensor green LED (power ON) yellow LED (output state)
• Shape
  Rectangular
• Degree of protection
  IP69K
• Material
  Hygienic stainless steel 316L housing PMMA lns.
Ambient air temperature for operation
-30...+70 °C
NEMA Rating
N/A
Feature: Audible
No
Indicator
LEDs
Sensing Mode (General)
Retroreflective
Operation
Light/Dark Operate
Adjustments
N/A
Feature: Ecolab Certified
Yes
Max Sensing Distance (mm)
3000
Max Op. Temp. (°C)
70
Lens Material
PMMA
Feature: Timing (Hold/Delay)
No
IO Link
No
Outputs
NPN
Power Supply/Supply Voltage
10-30 V dc
Housing Style
Rectangular
Special Feature: Intrinsically Safe
No
Delay at Power-up (ms)
300
Feature: Washdown Rated
Yes
Sensing Mode (Detailed)
Polarized
Power
DC
Quick Disconnect Type
M12 (Euro)
Special Feature: Water Detection
No
Number of Pins
4
IP Rating
IP69
Opposed Mode Emitter/Receiver
N/A
DeviceNet
No
Sensing Beam
Visible Red LED
Output response time (ms)
0.5
Max Op. Relative Humidity [%]
95% @ 55°C
Feature: Hazardous Area
No
Input/Output
Discrete
Min Op. Temp. (°C)
-30
Repeatability (µs)
150
Feature: Encapsulated
No
Primary Housing Material
Stainless Steel
Connection
Pigtail QD
Sensing Beam Wavelength
620
Barrel Diameter (mm)
N/A
Special Feature: Remote Teach
No
Feature: Chemical Resistant
Yes
