SGSSA4-400Q8 Banner Safety Light Curtains

SGSSA4-400Q8 on Powermatic Associates
Banner
  • SGSSA4-400Q8
  • SGSSA4-400Q8

Part#:SGSSA4-400Q8

Alt. Part#:803232

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; 8-pin M12 Integral QD; Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately

Product Details

  • Weight
    4173.0464 g
  • Country Of Origin
    HU
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Feature: Integral Muting
    No
  • Housing Material
    Aluminum; PMMA
  • Fault Output
    No
  • Auxiliary Output
    No
  • Shock
    10g at 16ms (6000 cycles)
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • Supply Current
    500 mA
  • Vibration
    10-55 Hz at 0.35 mm
  • OSSD Rating
    24 V dc at 0.5 A each
  • Short Protection
    Yes
  • System Type
    Transceiver - Active
  • Response Time
    12
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Scan Code
    None
  • Reduced Resolution
    No
  • Resolution (mm)
    4 - 400
  • Recovery Time
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Number of Pins (Receiver/Emitter)
    8
  • Operating Voltage
    24 V dc +/- 20%
  • Operating Distance (m)
    0.5 - 8
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP65
  • External Monitoring Device
    1 Channel
  • Connector Type
    M12
  • Safety Level
    Type 4
  • Defined Area Height (mm)
    1200
  • Fixed Blanking
    No
  • Overall Length (mm)
    1306.35
  • Dimensions WxD (mm)
    52 x 56.9
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSSA4-400Q8 on Powermatic Associates is $1,182.00. Order now.

About the product

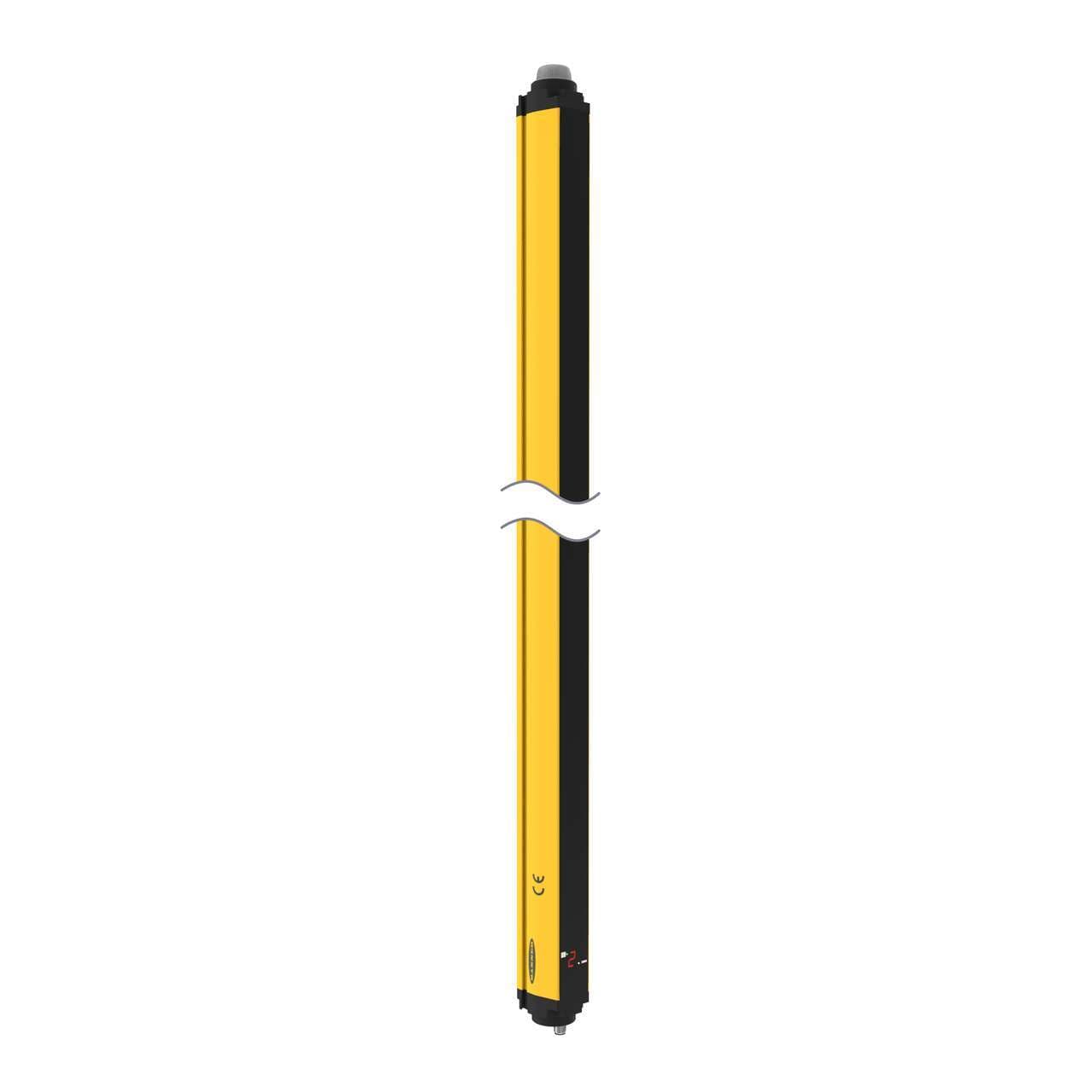

Banner Engineering SGSSA4-400Q8 is a safety light curtain from the SGS series designed for short-range applications. This active unit combines transmission and reception on one side and is housed in aluminum with a Polymethyl methacrylate (PMMA) lens and thermoplastic end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The unit has a protective height of 1200mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it measures 52mm in width, 1307mm in height, and 57mm in depth. The SGSSA4-400Q8 is equipped with 4 beams at a 400mm beam spacing/pitch, 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and has a sensing distance of 50cm to 8m. It utilizes infrared (IR) light with a response time of 12ms / 0.012 s and a wavelength of 950 nm, designed specifically for perimeter access guarding with a resolution of 400mm.
