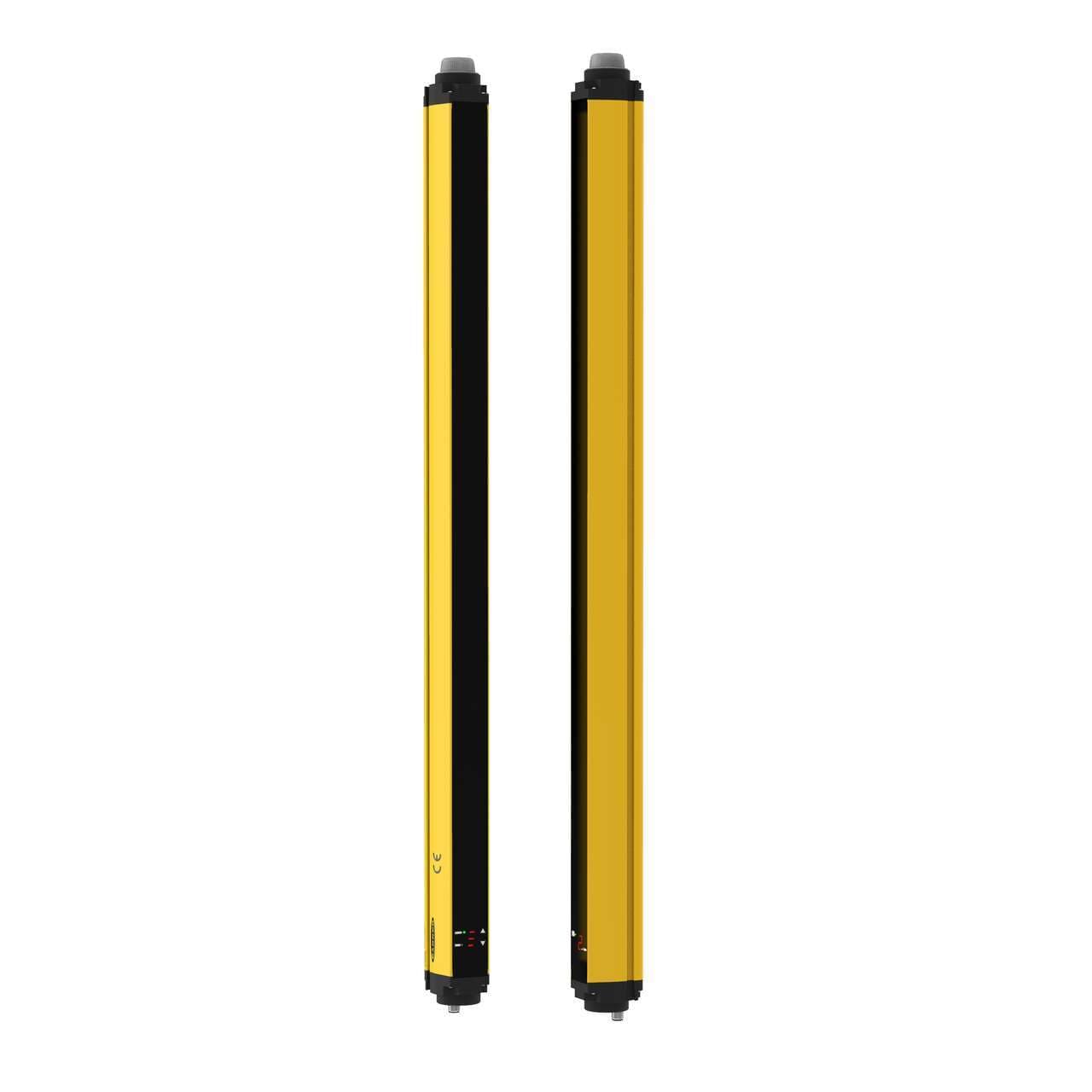

SGSSP4-300Q88 Banner Safety Light Curtains
Part#:SGSSP4-300Q88
Alt. Part#:803219
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 300 mm; Range: 0.5 to 30 m; 8-pin M12 Integral QD; Scan Codes, Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately
Product Details
- Weight 5098.37408 g
- Country Of Origin HU
- Feature: End-to-End Sensing No
- Feature: ESD Safe No
- Test Input No
- Fault Output No
- Vibration 10-55 Hz at 0.35 mm
- Short Protection Yes
- Housing Material Aluminum; PMMA
- Response Time 14
- Operating Voltage 24 V dc +/- 20%
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Feature: Integral Muting No
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Supply Current 500 mA
- System Type Emitter/Receiver Pair
- SIL Rating SIL3; CL3
- Scan Code Selectable
- Electrical Safety Class III
- Shock 10g at 16ms (6000 cycles)
- Auxiliary Output No
- Reduced Resolution No
- IP Rating IP65
- Operating Distance (m) 0.5 - 30
- PL Rating Ple
- Resolution (mm) 4 - 300
- Recovery Time N/A
- Operating Temperature 0 to +55 deg. C; RH 95%
- Housing Finish Yellow Polyester
- Number of Pins (Receiver/Emitter) 8,8
- Connector Type M12
- Dimensions WxD (mm) 52 x 56.9
- Safety Level Type 4
- Fixed Blanking No
- External Monitoring Device 1 Channel
- Overall Length (mm) 1006.35
- Defined Area Height (mm) 900
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSSP4-300Q88 on Powermatic Associates is $1,771.00. Order now.
About the product

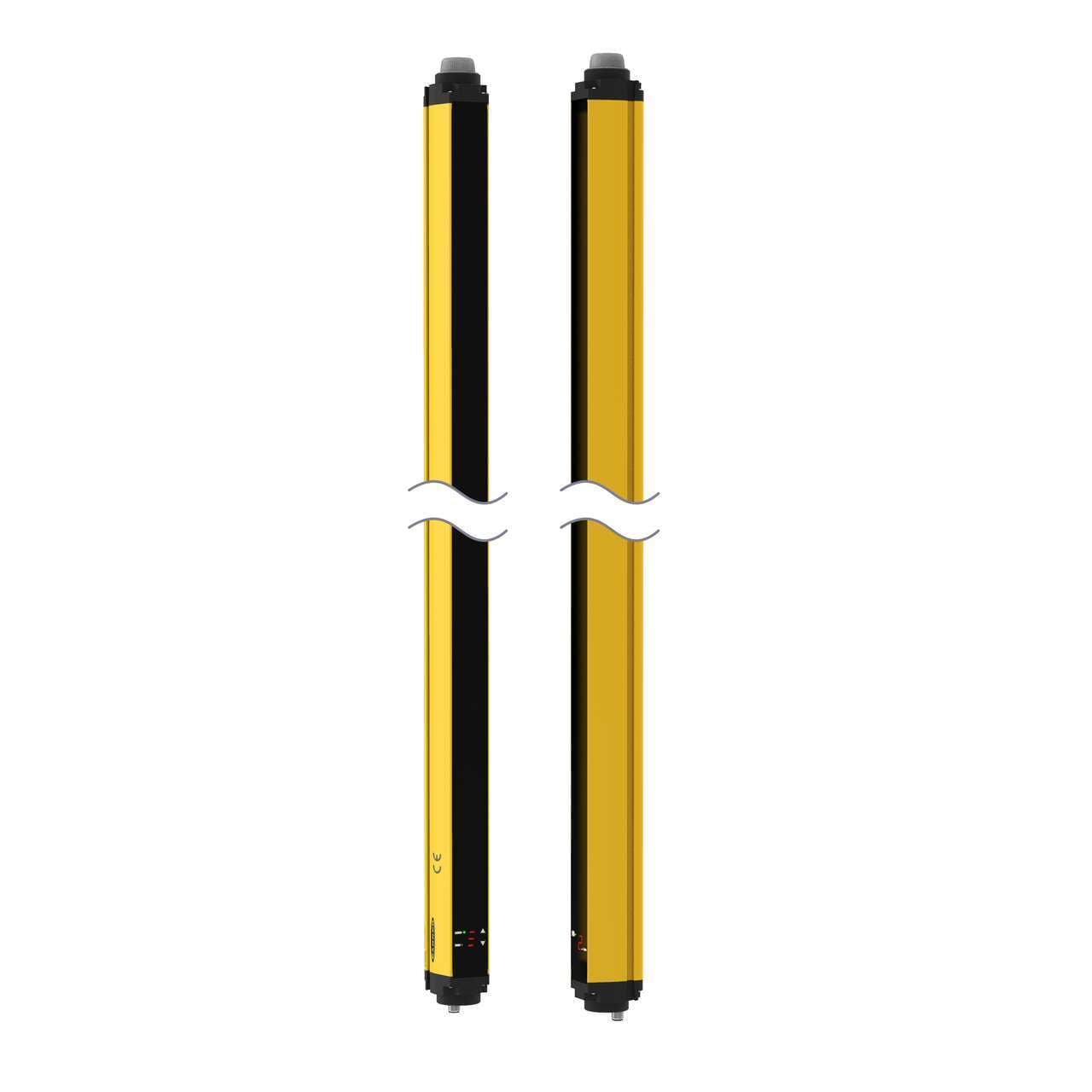

Banner Engineering SGSSP4-300Q88 is a safety light curtain from the SGS series designed for short-range applications. This part consists of an emitter and receiver pair housed in aluminum with Polymethyl methacrylate (PMMA) lenses and thermoplastic end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The dimensions include a 900mm protective height, with a net width of 52 mm, a net height of 1007 mm, and a net depth of 57 mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. The SGSSP4-300Q88 is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. It has 4 beams with a 300mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance ranges from 50cm to 30m, with an infrared light color, a response time of 14ms / 0.014 s, and a wavelength of 950 nm. The resolution is set at 300mm, suitable for perimeter access guarding.
