SGSSP2-500Q88 Banner Safety Light Curtains

SGSSP2-500Q88 on Powermatic Associates
Banner
  • SGSSP2-500Q88
  • SGSSP2-500Q88

Part#:SGSSP2-500Q88

Alt. Part#:803217

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SGS Safety Grid System, Emitter/Receiver Pair; Beams: 2; Resolution: 500 mm; Range: 0.5 to 30 m; 8-pin M12 Integral QD; Scan Codes, Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately

Product Details

  • Weight
    3274.93424 g
  • Country Of Origin
    HU
  • Primary Housing Material
    Aluminum
  • IP Rating
    IP65
  • Recovery Time
    N/A
  • Auxiliary Output
    No
  • Safety Level
    Type 4
  • Reduced Resolution
    No
  • Electrical Safety Class
    III
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    Selectable
  • Housing Finish
    Yellow Polyester
  • System Type
    Emitter/Receiver Pair
  • Connector Type
    M12
  • Short Protection
    Yes
  • Test Input
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Dimensions WxD (mm)
    52 x 56.9
  • PL Rating
    Ple
  • Feature: Integral Muting
    No
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Feature: ESD Safe
    No
  • External Monitoring Device
    1 Channel
  • Defined Area Height (mm)
    500
  • Fixed Blanking
    No
  • Response Time
    12
  • Resolution (mm)
    2 - 500
  • Housing Material
    Aluminum; PMMA
  • Fault Output
    No
  • Supply Current
    500 mA
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • SIL Rating
    SIL3; CL3
  • Scan Code
    Selectable
  • Number of Pins (Receiver/Emitter)
    8,8
  • OSSD Rating
    24 V dc at 0.5 A each
  • Overall Length (mm)
    606.35
  • Operating Distance (m)
    0.5 - 30
  • Operating Voltage
    24 V dc +/- 20%
  • Shock
    10g at 16ms (6000 cycles)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSSP2-500Q88 on Powermatic Associates is $1,247.00. Order now.

About the product

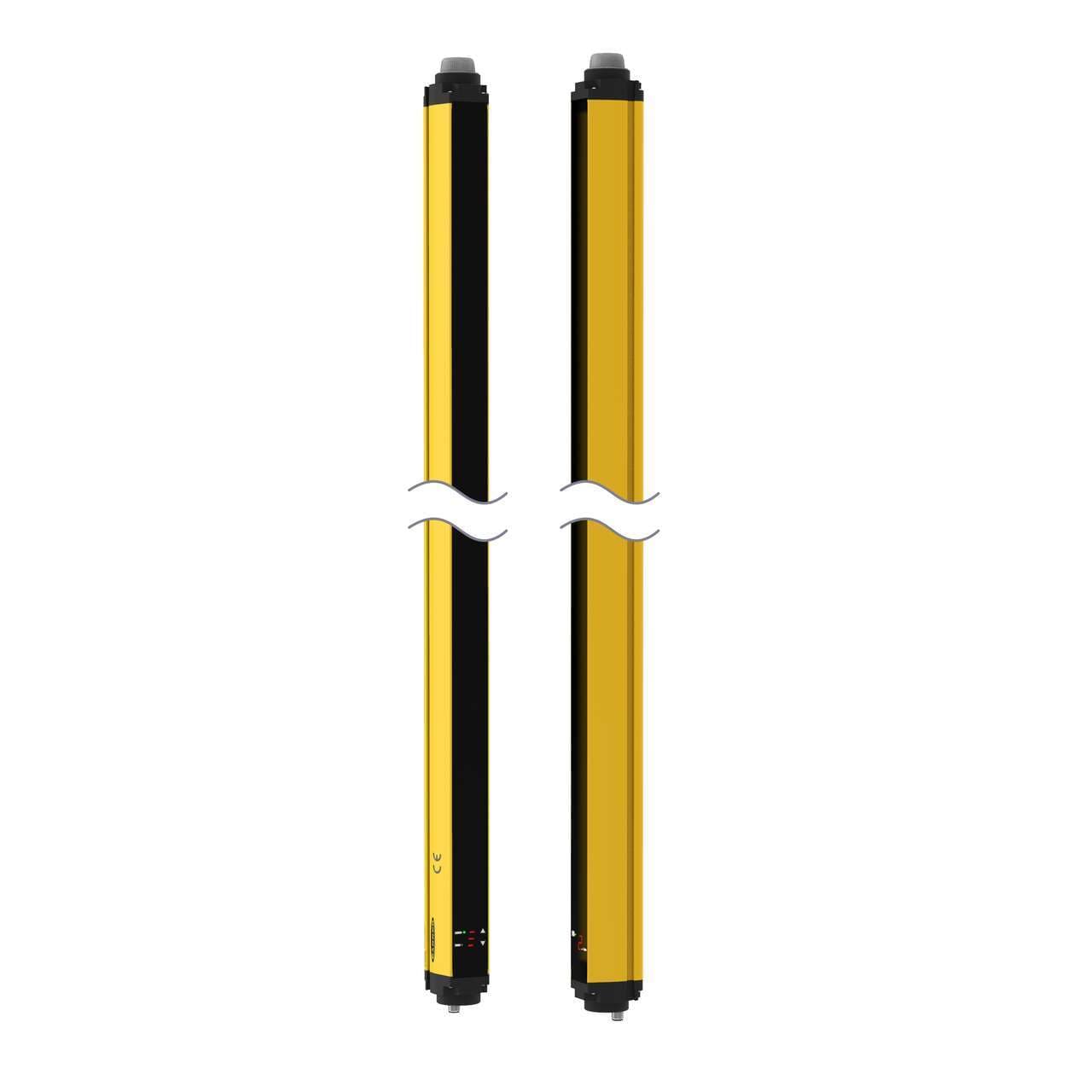

Banner Engineering SGSSP2-500Q88 is a safety light curtain from the SGS series designed for short-range applications. This part consists of an emitter and receiver pair housed in yellow aluminum with Polymethyl methacrylate (PMMA) lenses and thermoplastic end caps. It features a protective height of 500mm and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The SGSSP2-500Q88 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 52mm in width, 607mm in height, and 57mm in depth. The safety light curtain is designed with 2 beams spaced 500mm apart and provides 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). It has a sensing distance ranging from 50cm to 30m and utilizes infrared (IR) light with a wavelength of 950 nm. The response time of the device is 12ms, and it is specifically tailored for perimeter access guarding with a resolution of 500mm.

SGSSP2-500Q88 Related Documents
