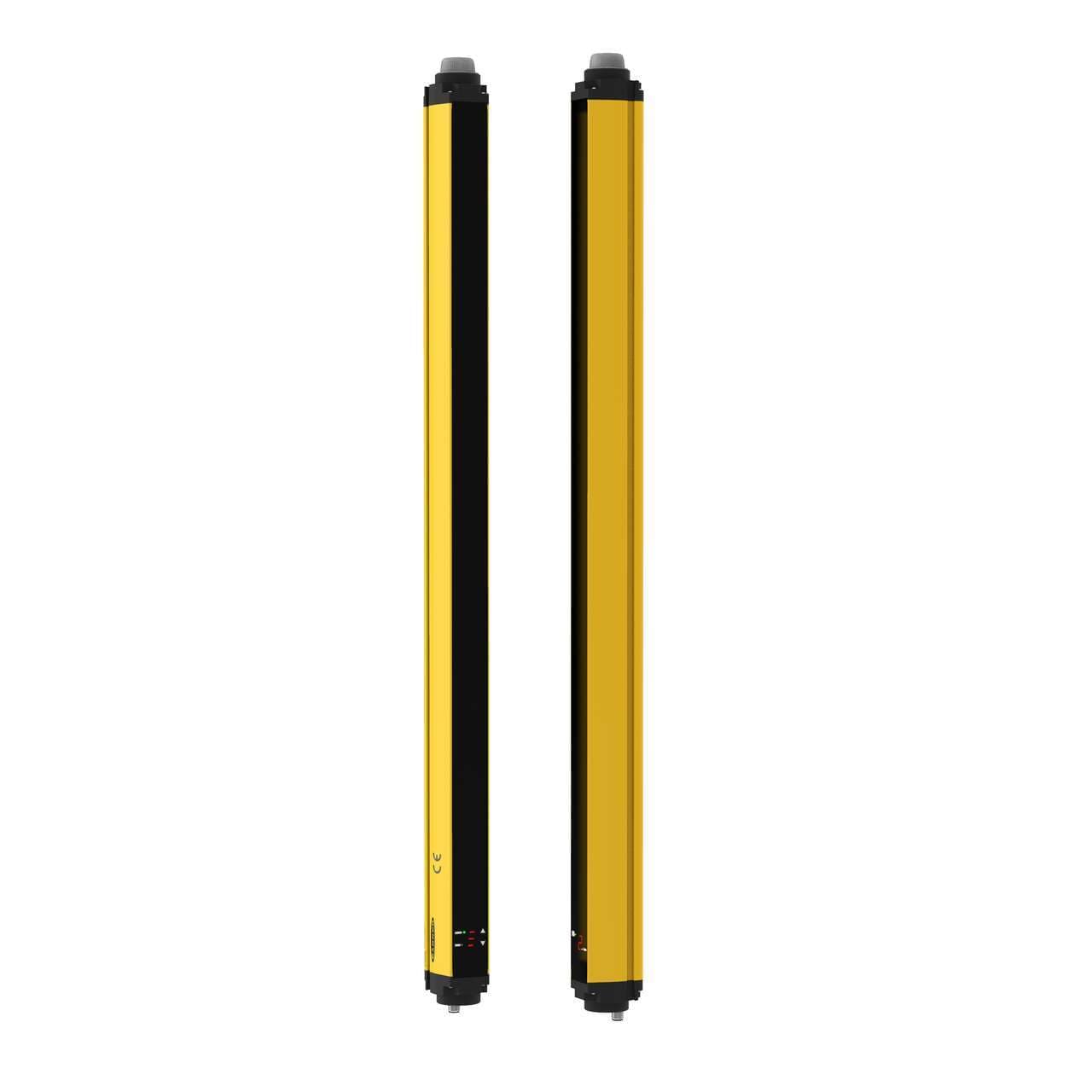

SGSSP3-400Q88 Banner Safety Light Curtains

SGSSP3-400Q88 on Powermatic Associates
Banner
  • SGSSP3-400Q88
  • SGSSP3-400Q88

Part#:SGSSP3-400Q88

Alt. Part#:803218

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SGS Safety Grid System, Emitter/Receiver Pair; Beams: 3; Resolution: 400 mm; Range: 0.5 to 30 m; 8-pin M12 Integral QD; Scan Codes, Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately

Product Details

  • Weight
    4699.21312 g
  • Country Of Origin
    HU
  • Connector Type
    M12
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Scan Code
    Selectable
  • Number of Pins (Receiver/Emitter)
    8,8
  • Primary Housing Material
    Aluminum
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    500 mA
  • Housing Material
    Aluminum; PMMA
  • Fault Output
    No
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • SIL Rating
    SIL3; CL3
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Response Time
    13
  • PL Rating
    Ple
  • Electrical Safety Class
    III
  • Reduced Resolution
    No
  • Resolution (mm)
    3 - 400
  • Recovery Time
    N/A
  • Operating Voltage
    24 V dc +/- 20%
  • IP Rating
    IP65
  • Operating Distance (m)
    0.5 - 30
  • Housing Finish
    Yellow Polyester
  • Overall Length (mm)
    906.35
  • Dimensions WxD (mm)
    52 x 56.9
  • External Monitoring Device
    1 Channel
  • Defined Area Height (mm)
    800
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Fixed Blanking
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSSP3-400Q88 on Powermatic Associates is $1,509.00. Order now.

About the product

Banner Engineering SGSSP3-400Q88 is a safety light curtain from the SGS series designed for short-range applications. This part features an emitter and receiver pair housed in aluminum with a polycarbonate (PMMA) lens and thermoplastic end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The SGSSP3-400Q88 has a protective height of 800mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This part is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. The dimensions include a net width of 52mm, a net height of 907mm, and a net depth of 57mm. It features 3 beams with a 400mm beam spacing/pitch and offers 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance ranges from 50cm to 30m, with an infrared light color, a response time of 13ms, and a wavelength of 950 nm. The resolution is set at 400mm, suitable for perimeter access guarding.
