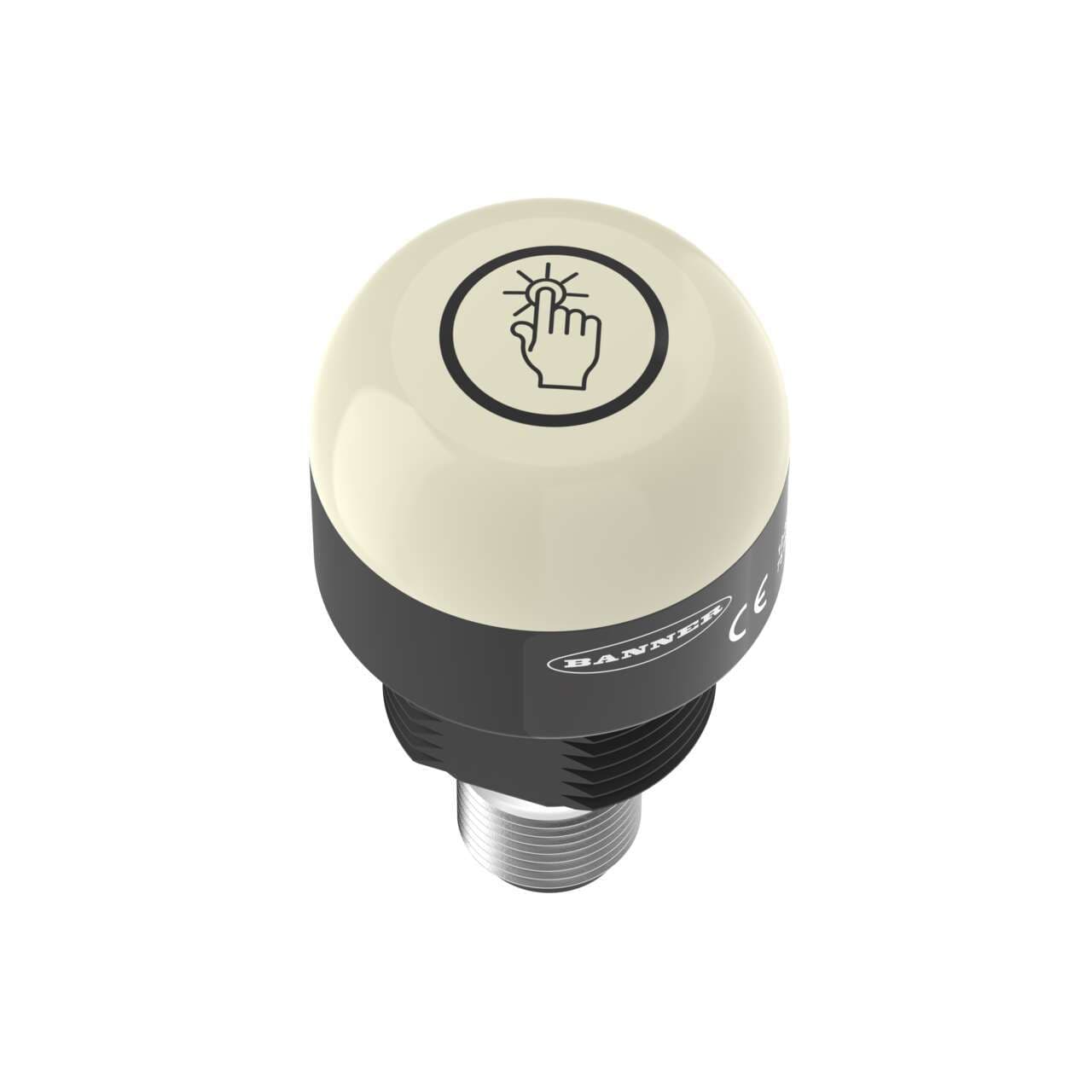

K30APT2YRGC4Q Banner Pick-to-Light Sensors
Part#:K30APT2YRGC4Q
Alt. Part#:802348
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series EZ-LIGHT: 3-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Yellow Red Green; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Cable Length (m) 0.15
- Number of Colors / Segments 3
- Color Option 2 Red
- Acknowledge (Sense) Light Red
- Environmental Rating IP67; IP69
- Min Op. Temperature (°C) -40
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Lumens Color 2 1.7
- Supply Voltage 12-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Primary Window Material Polycarbonate Diffused
- Feature: Chemical Resistant No
- Power Source DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type PNP
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Color Option 3 Green
- Max Input Response Time (ms) 300
- Feature: Washdown Rated Yes
- Job Light Green
- Max Current Color (mA) 55
- Mounting Thread M22 x 1.5
- Lumens Color 1 4.4
- Max Output Response Time (ms) 150
- Button Operation Momentary
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 580 nm
- Pick-to-Light Function C4
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Product Size (mm) 30
- Color 3 - Wavelength/Color Temp/Coordinates 525 nm
- Output Type PNP
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Actuation Yes
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Wireless No
- Operation Normally Open
- Color Option 1 Yellow
- Feature: Hazardous Area No
- Power DC
- IO Link No
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect Yes
- Feature: Audible No
- Lumens Color 3 4.4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30APT2YRGC4Q on Powermatic Associates is $134.00. Order now.
About the product
Banner Engineering K30APT2YRGC4Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. This product features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The device operates on a supply voltage range of 12Vdc-30Vdc, with a nominal 24Vdc, and offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm / 1-3/16". It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65, NEMA 4X, and NEMA 13. The operating mode includes a momentary job light (Yellow) that is ON when the job input is active, touch activation of the output and sensing light (Green) until job input is removed, and a mispick light (Red) activation for 5 seconds with a Normally Open (NO) touch output upon touch with inactive job input. The device has a current consumption of 55mA, one digital input (12-30Vdc; PNP) for JOB color control, and two digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
